Jinko Tiger Neo 54HL4R-B 435-460 Watt All Black Monofacial MODULE N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description

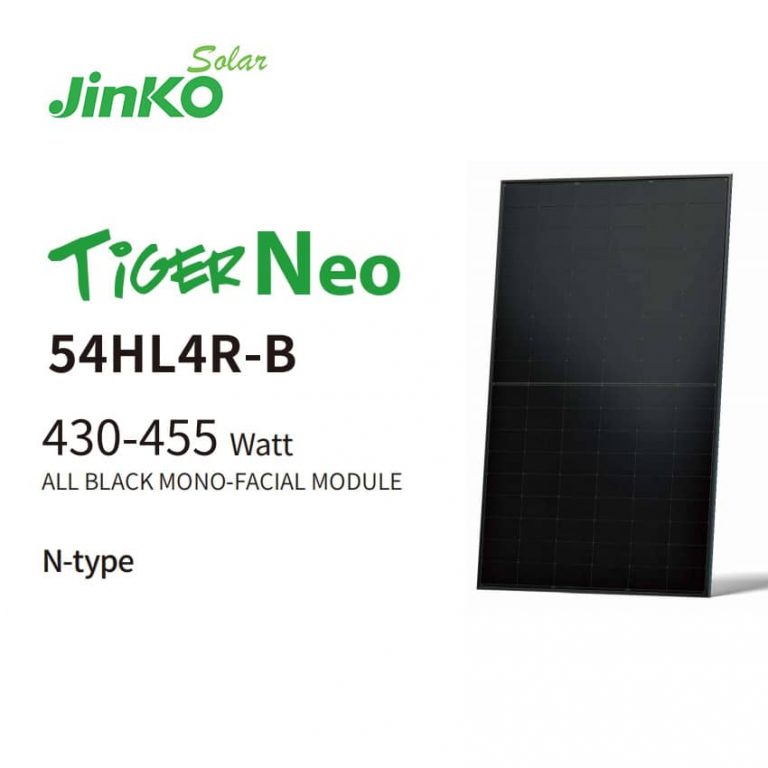

Jinko Tiger Neo 54HL4R-B | 435-460W | N-Type All Black Monofacial Solar Module
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 54HL4R-B, a premium All Black N-type monocrystalline module engineered for maximum power output and superior efficiency.
Features & Benefits:

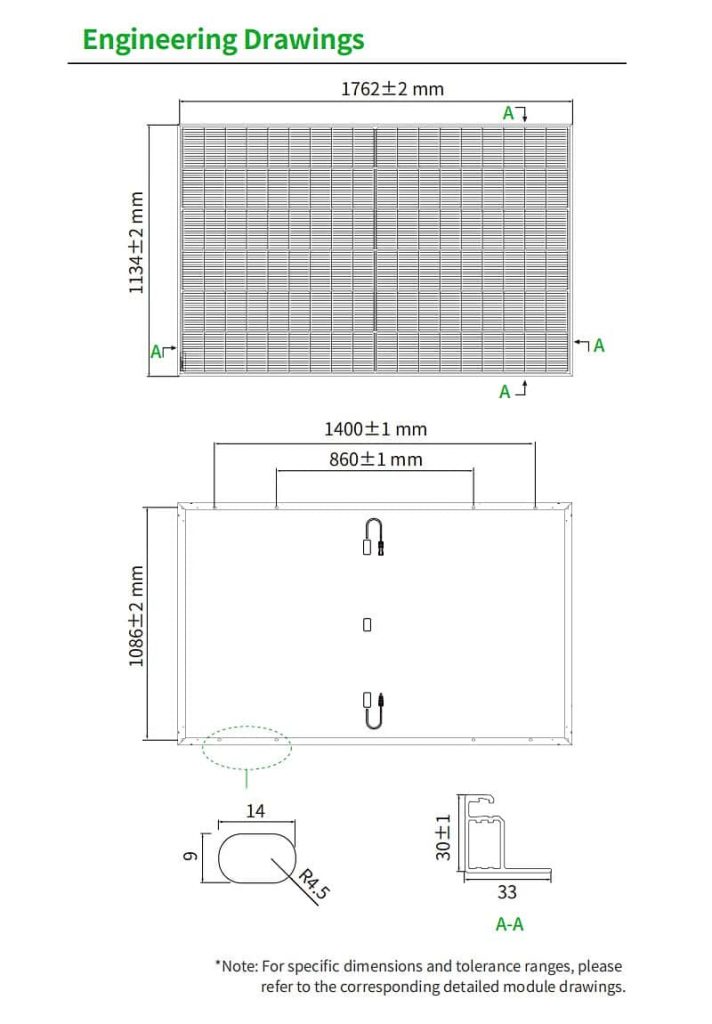

Mechanical Characteristics
| Cell Type | N - type Mono - crystalline |
|---|---|
| Number of cells | 108 (54×2) |
| Dimensions | 1762×1134×30 mm |
| Weight | 21.0 kg |
| Front Glass | 3.2mm, Anti - reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |
Specifications (STC)
| Maximum Power – Pmax [Wp] | 430 | 435 | 440 | 445 | 450 | 455 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage – Vmp [V] | 32.58 | 32.78 | 32.99 | 33.19 | 33.39 | 33.58 |
| Maximum Power Current – Imp [A] | 13.2 | 13.27 | 13.34 | 13.41 | 13.48 | 13.55 |
| Open - circuit Voltage – Voc [V] | 39.16 | 39.36 | 39.57 | 39.77 | 39.97 | 40.17 |
| Short - circuit Current – Isc [A] | 13.65 | 13.72 | 13.8 | 13.87 | 13.94 | 14.01 |
| Module Efficiency STC [%] | 21.52 | 21.77 | 22.02 | 22.27 | 22.52 | 22.77 |
| Power Tolerance | 0 ~ + 3% | 0 ~ + 3% | 0 ~ + 3% | 0 ~ + 3% | 0 ~ + 3% | 0 ~ + 3% |
| Temperature Coefficients of Pmax | -0.29%/°C | -0.29%/°C | -0.29%/°C | -0.29%/°C | -0.29%/°C | -0.29%/°C |
| Temperature Coefficients of Voc | -0.25%/°C | -0.25%/°C | -0.25%/°C | -0.25%/°C | -0.25%/°C | -0.25%/°C |
| Temperature Coefficients of Isc | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM = 1.5 | ||||||
