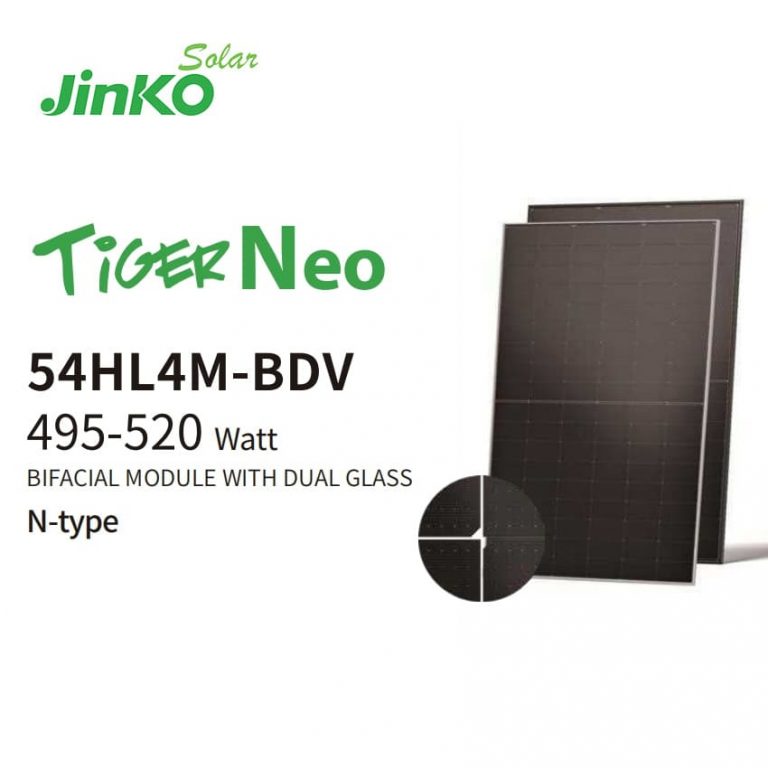

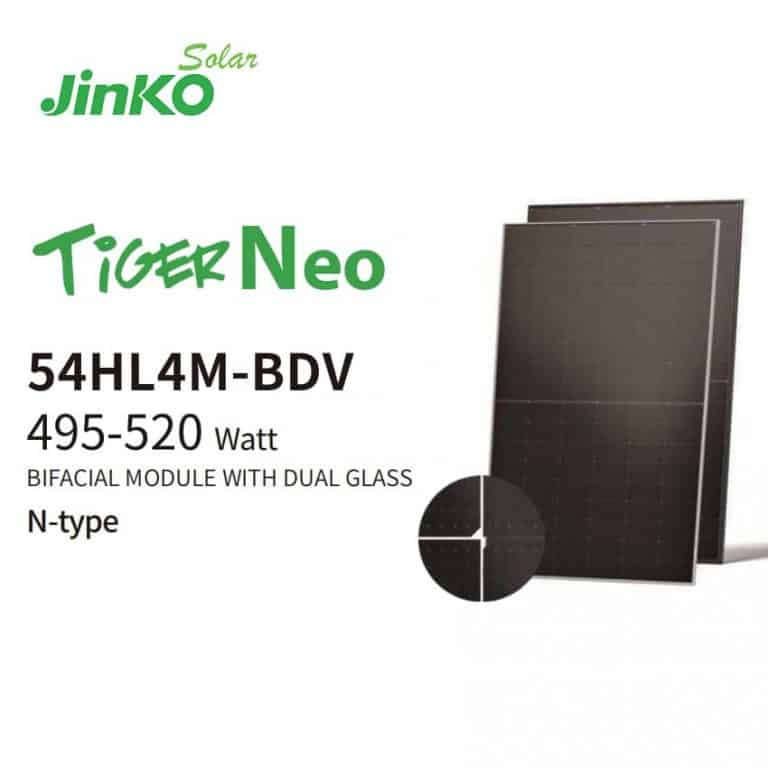

Jinko Tiger Neo 54HL4M-BDV 495-520 Watt Dual Glass Bifacial Module N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description
Jinko Tiger Neo 54HL4M-BDV | 495-520W | N-Type Dual Glass Bifacial Solar Module
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 54HL4M-BDV, a premium N-type dual glass bifacial solar module engineered for maximum power output and superior efficiency.
Features & Benefits:

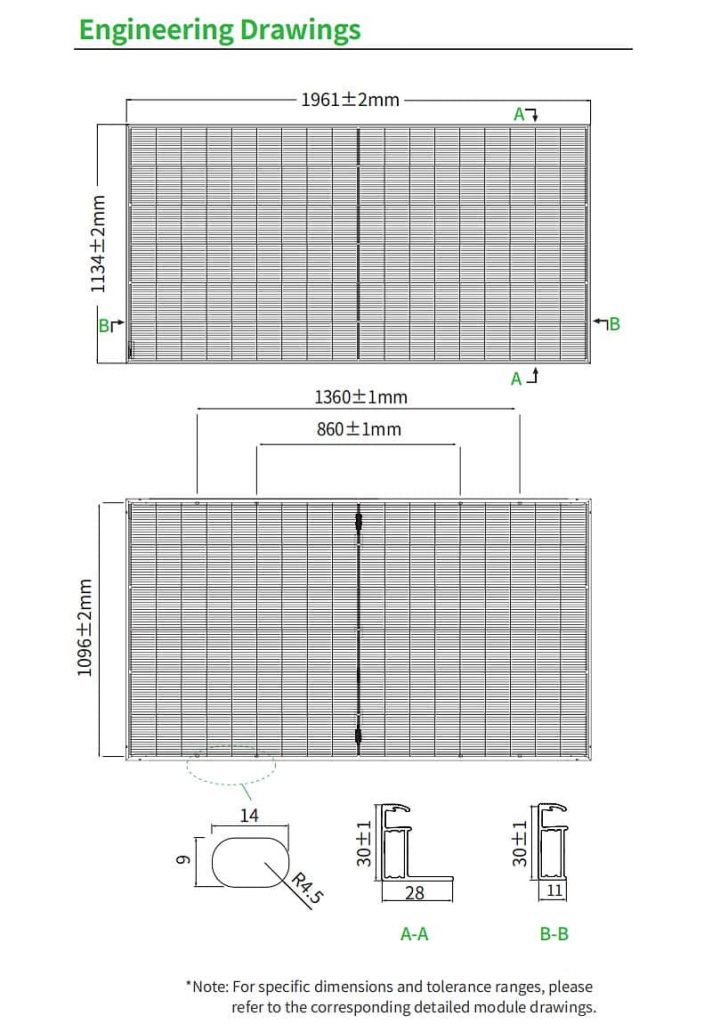

Mechanical Characteristics
| Cell Type | N-type Mono-crystalline |
|---|---|
| Number of cells | 108（54×2） |
| Dimensions | 1961×1134×30 mm |
| Weight | 27.0 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class Ⅱ |
| IEC Fire Type | Class C |
| Connector Type | JK03M / JK03M2 / Others |
| Output Cables | 4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length |

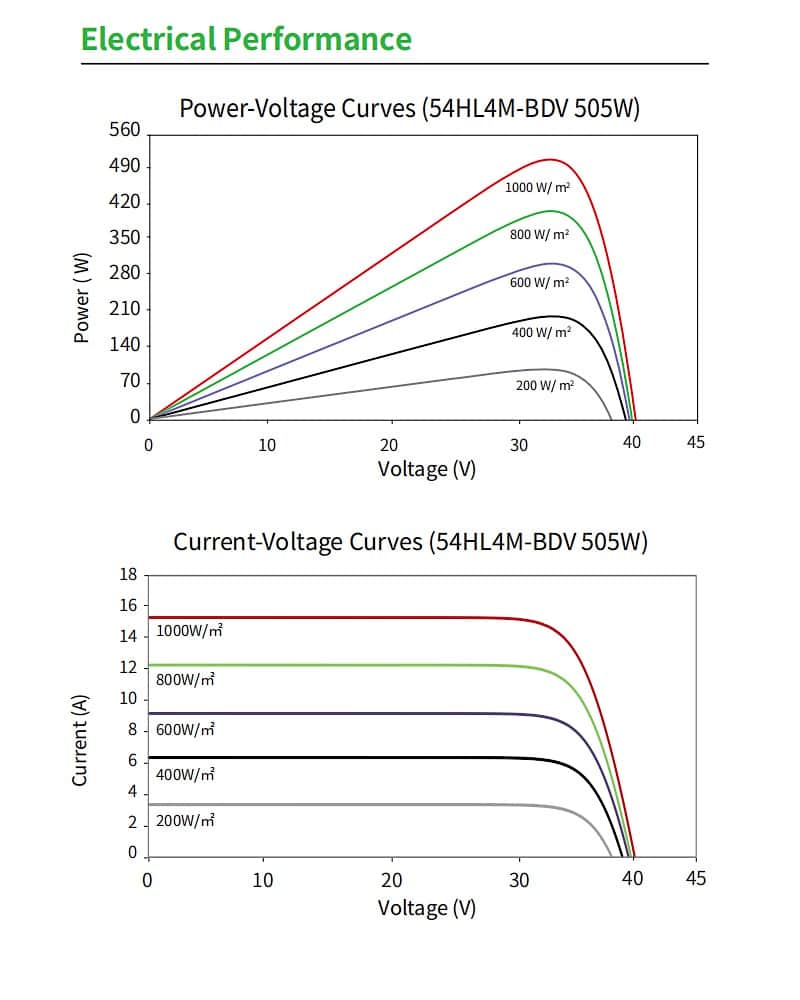

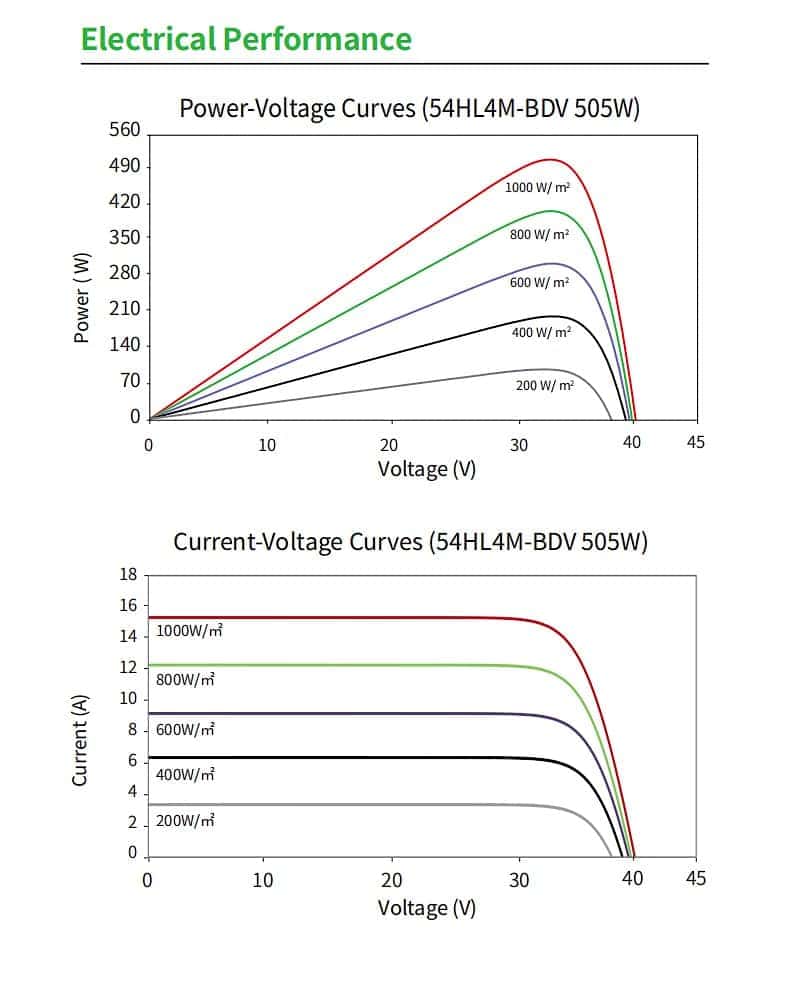

Specifications (STC)
| Maximum Power - Pmax [Wp] | 495 | 500 | 505 | 510 | 515 | 520 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage - Vmp [V] | 33.72 | 33.95 | 34.17 | 34.39 | 34.62 | 34.83 |
| Maximum Power Current - Imp [A] | 14.68 | 14.73 | 14.78 | 14.83 | 14.88 | 14.93 |
| Open-circuit Voltage - Voc [V] | 40.21 | 40.38 | 40.55 | 40.72 | 40.89 | 41.06 |
| Short-circuit Current - Isc [A] | 15.58 | 15.63 | 15.68 | 15.73 | 15.78 | 15.83 |
| Module Efficiency STC [%] | 22.26 | 22.48 | 22.71 | 22.93 | 23.16 | 23.38 |
| Power Tolerance | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % |
| Temperature Coefficients of Pmax | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ |
| Temperature Coefficients of Voc | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ |
| Temperature Coefficients of Isc | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ |
| STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5 | ||||||
