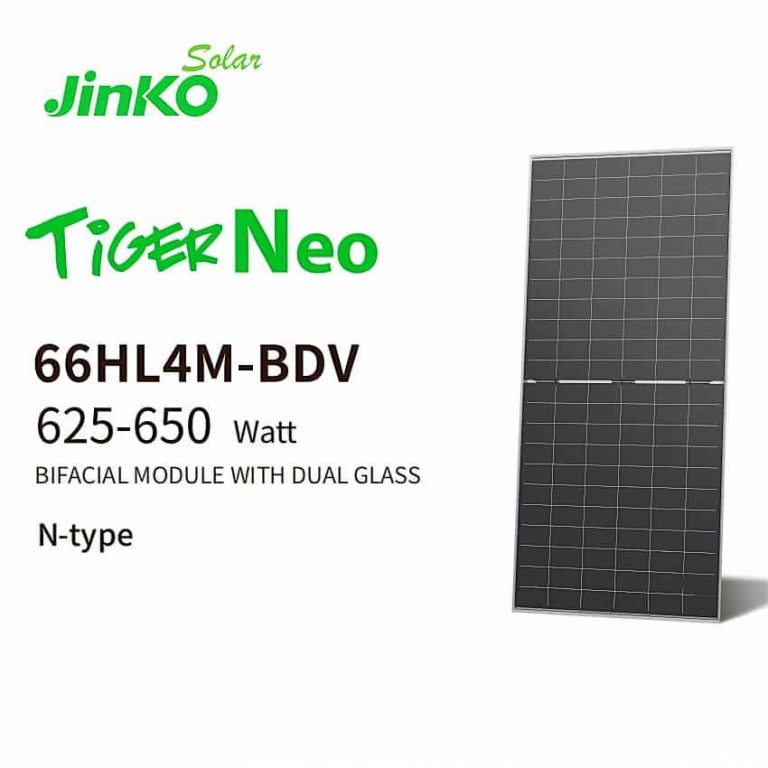

Jinko Tiger Neo 66HL4M-BDV 625-650 Watt Dual Glass Bifacial Module N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description
Jinko Tiger Neo 66HL4M-BDV | 625-650W | N-Type Dual Glass Bifacial Solar Module
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 66HL4M-BDV, a premium N-type dual glass bifacial solar module engineered for maximum power output and superior efficiency.
Features & Benefits:

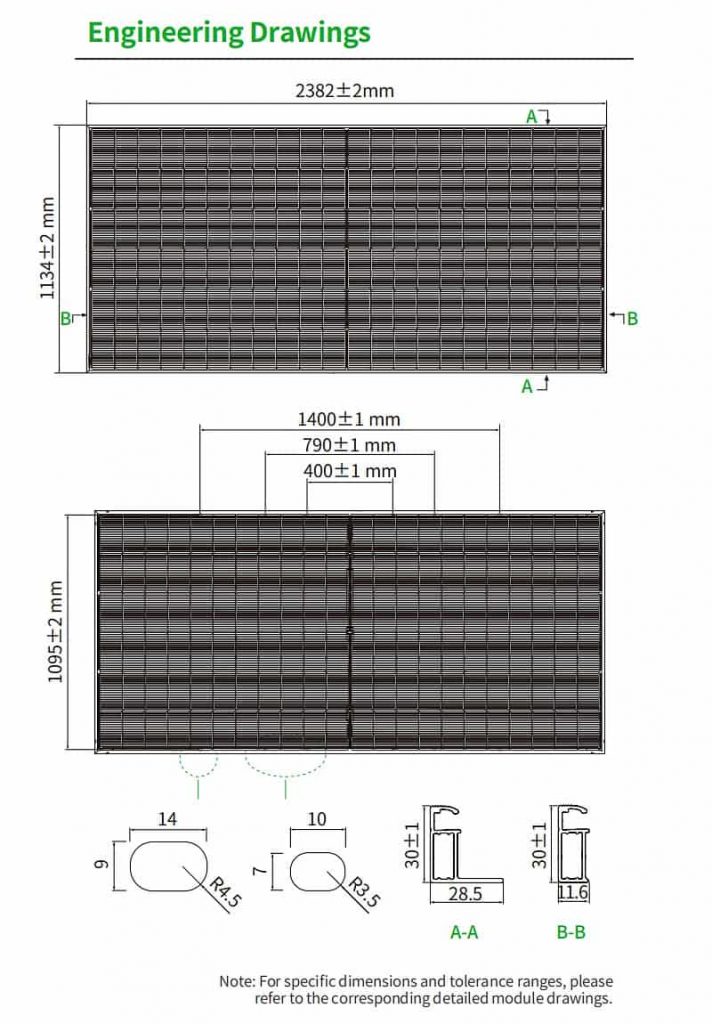

Mechanical Characteristics
| Cell Type | N-type Mono-crystalline |
|---|---|
| Number of cells | 132（66×2） |
| Dimensions | 2382×1134×30 mm |
| Weight | 32.4 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class Ⅱ |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length |

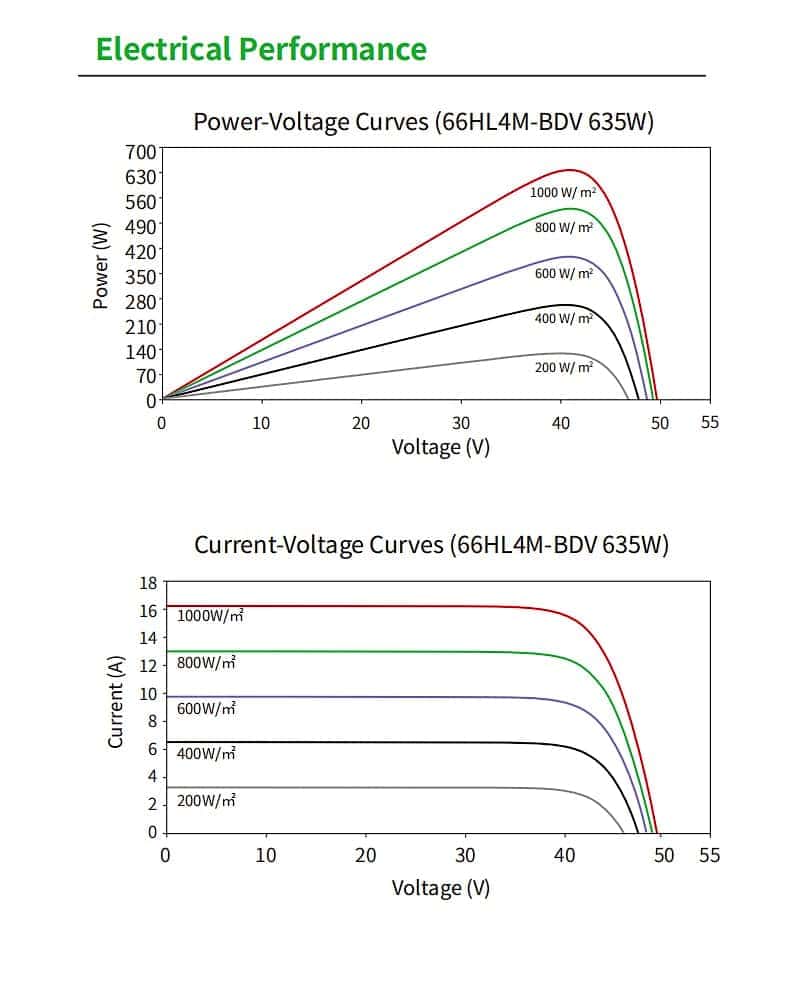

Specifications (STC)
| Maximum Power - Pmax [Wp] | 625 | 630 | 635 | 640 | 645 | 650 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage - Vmp [V] | 40.88 | 41.02 | 41.16 | 41.30 | 41.44 | 41.58 |
| Maximum Power Current - Imp [A] | 15.29 | 15.36 | 15.43 | 15.50 | 15.57 | 15.64 |
| Open-circuit Voltage - Voc [V] | 49.28 | 49.48 | 49.68 | 49.88 | 50.08 | 50.28 |
| Short-circuit Current - Isc [A] | 16.14 | 16.20 | 16.26 | 16.32 | 16.38 | 16.44 |
| Module Efficiency STC [%] | 23.14 | 23.32 | 23.51 | 23.69 | 23.88 | 24.06 |
| Power Tolerance | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % |
| Temperature Coefficients of Pmax | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ |
| Temperature Coefficients of Voc | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ |
| Temperature Coefficients of Isc | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ |
| STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5 | ||||||
