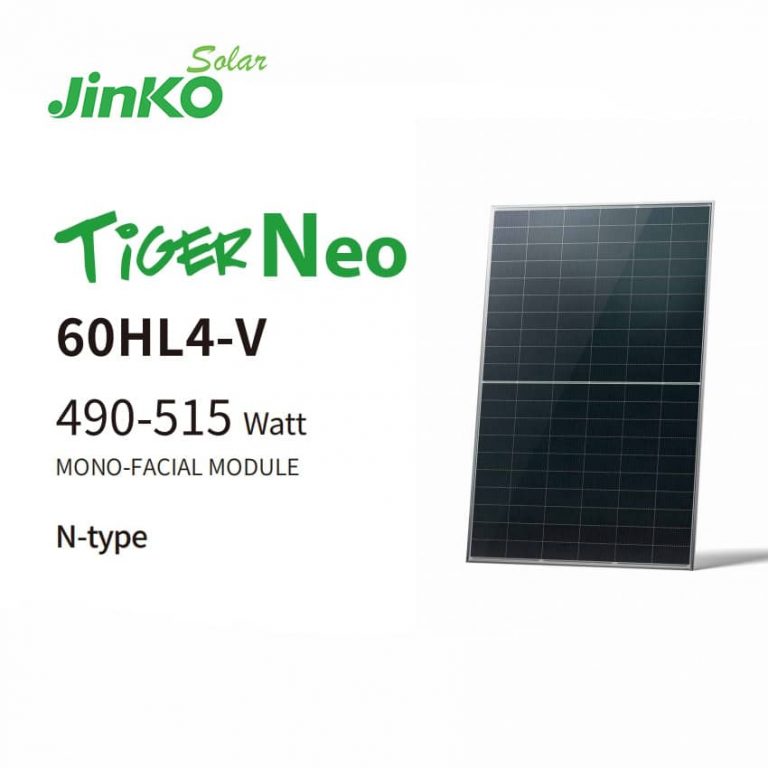

Jinko Tiger Neo 60HL4-V 490-515 Watt Monofacial MODULE N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description
Jinko Tiger Neo 60HL4-V | 490-515W | N-Type Monofacial Solar Module
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 60HL4-V, a premium N-type monocrystalline module engineered for maximum power output and superior efficiency.
Features & Benefits:

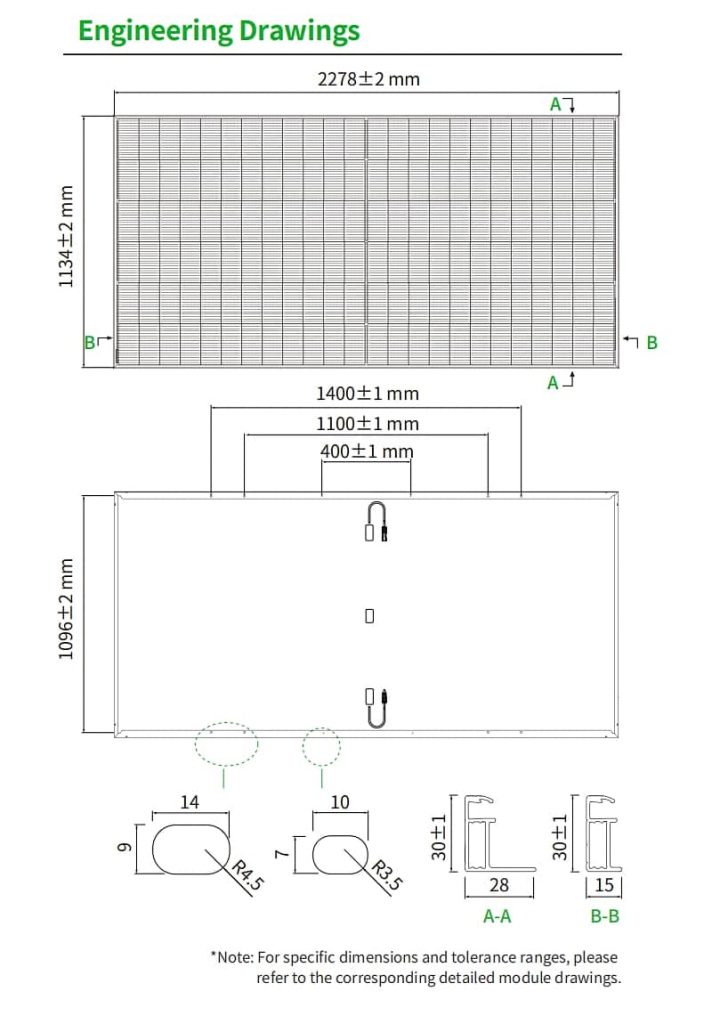

Mechanical Characteristics
| Cell Type | N - type Mono - crystalline |
|---|---|
| Number of cells | 144 (72×2) |
| Dimensions | 2278×1134×30 mm |
| Weight | 27.0 kg |
| Front Glass | 3.2mm, Anti - reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |

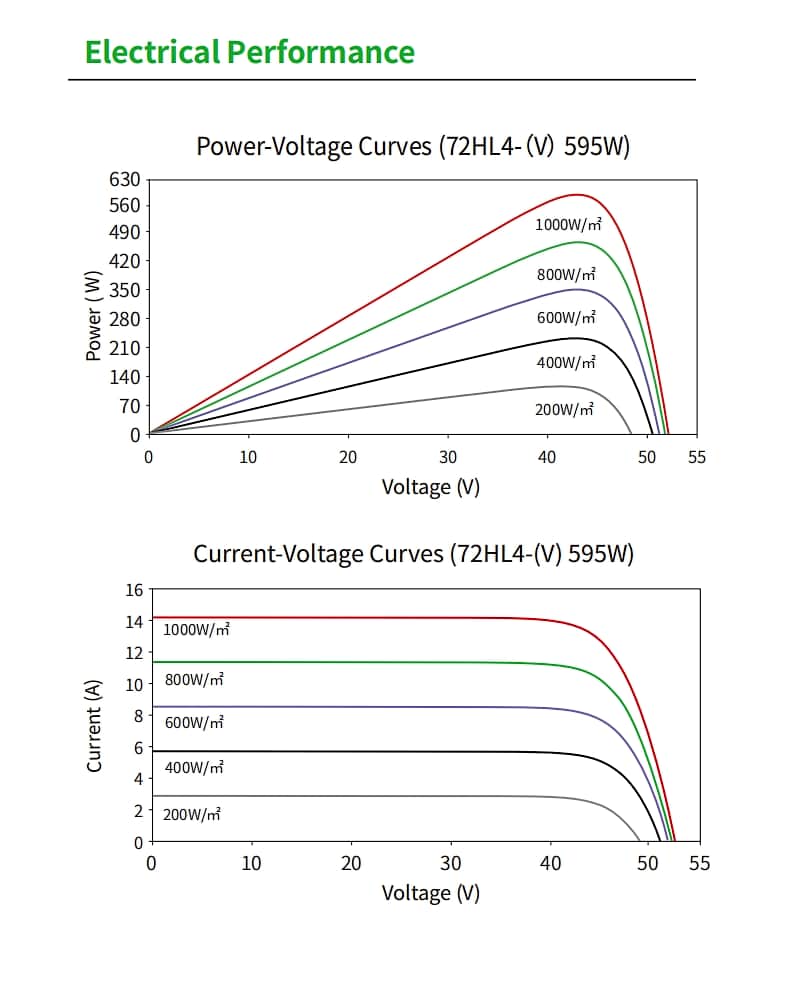

Specifications (STC)
| Maximum Power – Pmax [Wp] | 580 | 585 | 590 | 595 | 600 | 605 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage – Vmp [V] | 43.35 | 43.53 | 43.71 | 43.88 | 44.06 | 44.23 |
| Maximum Power Current – Imp [A] | 13.38 | 13.44 | 13.5 | 13.56 | 13.62 | 13.68 |
| Open-circuit Voltage – Voc [V] | 52.31 | 52.47 | 52.63 | 52.79 | 52.95 | 53.11 |
| Short-circuit Current – Isc [A] | 14.01 | 14.07 | 14.13 | 14.19 | 14.25 | 14.31 |
| Module Efficiency STC [%] | 22.45 | 22.65 | 22.84 | 23.03 | 23.23 | 23.42 |
| Power Tolerance | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % |
| Temperature Coefficients of Pmax | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C |
| Temperature Coefficients of Voc | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C |
| Temperature Coefficients of Isc | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5 | ||||||
