Jinko Tiger Neo 72HL4-(V) 580-605 watt Monofacial MODULE N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description
Jinko Tiger Neo 72HL4-(V) | 580-605W | N-Type Monofacial Solar Module
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 72HL4-(V), a premium N-type monocrystalline module engineered for maximum power output and superior efficiency.
Features & Benefits:

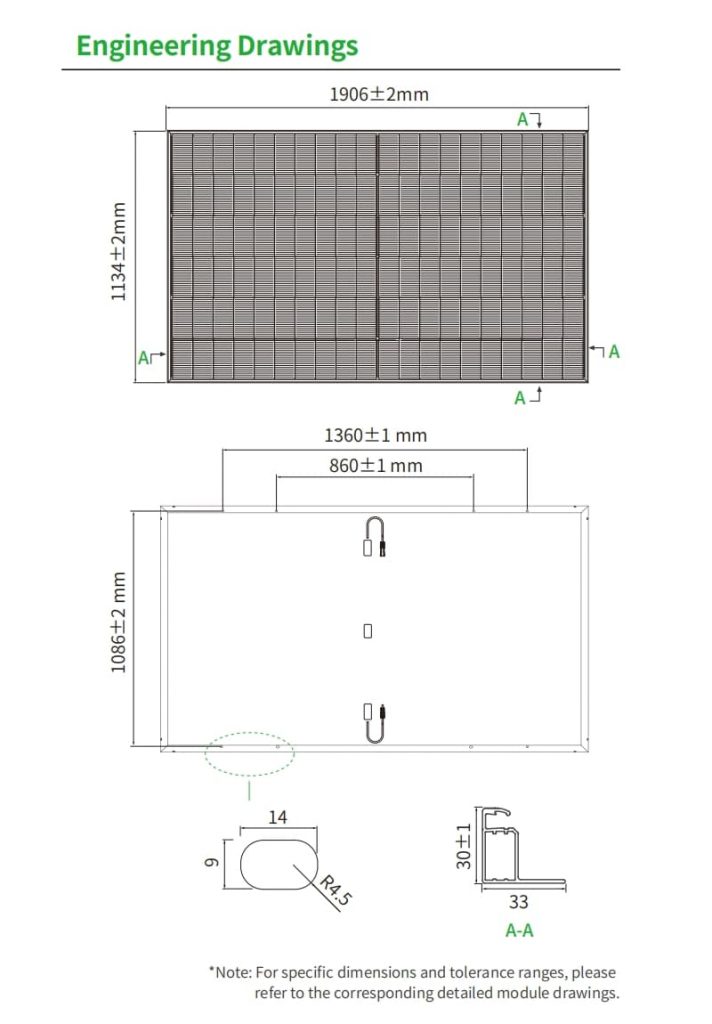

Mechanical Characteristics
| Cell Type | N - type Mono - crystalline |
|---|---|
| Number of cells | 120 (60×2) |
| Dimensions | 1906×1134×30 mm |
| Weight | 22.5 kg |
| Front Glass | 3.2mm, Anti - reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | JK03M, JK03M2 (JinKO)/MC4 - EVO2 (Staubli) |
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |

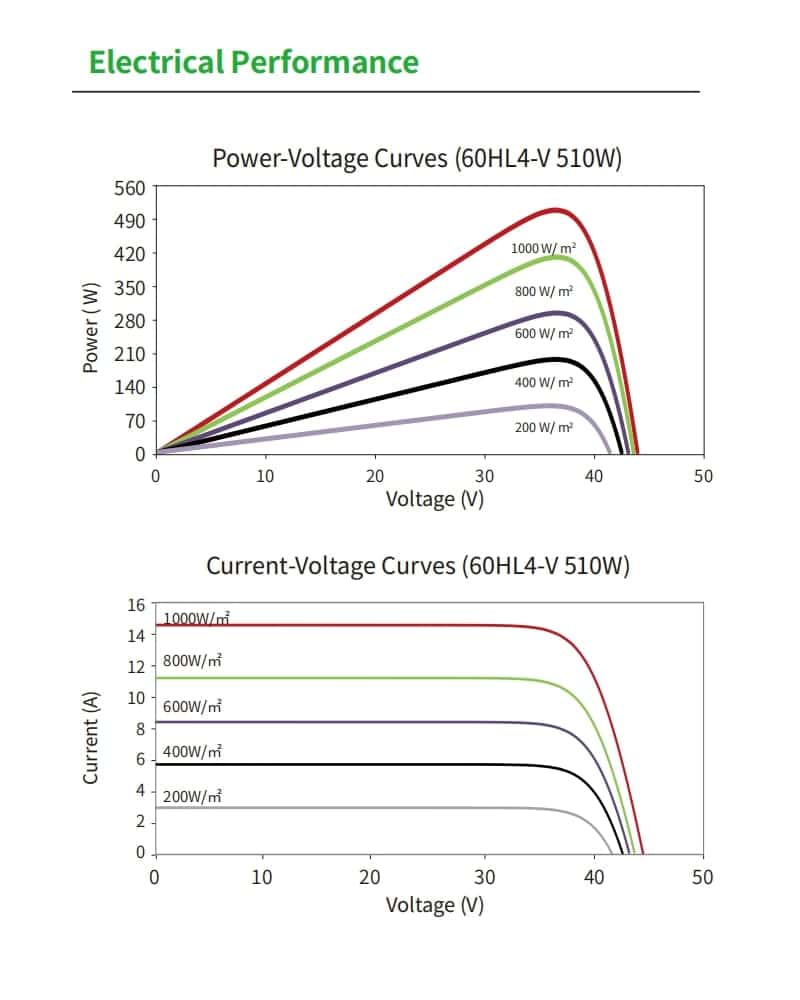

Specifications (STC)
| Maximum Power – Pmax [Wp] | 490 | 495 | 500 | 505 | 510 | 515 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage – Vmp [V] | 36.43 | 36.62 | 36.79 | 36.97 | 37.15 | 37.32 |
| Maximum Power Current – Imp [A] | 13.45 | 13.52 | 13.59 | 13.66 | 13.73 | 13.8 |
| Open-circuit Voltage – Voc [V] | 43.91 | 44.07 | 44.21 | 44.36 | 44.51 | 44.66 |
| Short-circuit Current – Isc [A] | 14.01 | 14.09 | 14.17 | 14.25 | 14.33 | 14.41 |
| Module Efficiency STC [%] | 22.67 | 22.9 | 23.13 | 23.36 | 23.6 | 23.83 |
| Power Measurement Tolerance | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% |
| Power Sorting | -5W ~ +15W | -5W ~ +15W | -5W ~ +15W | -5W ~ +15W | -5W ~ +15W | -5W ~ +15W |
| Temperature Coefficients of Pmax | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C |
| Temperature Coefficients of Voc | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C |
| Temperature Coefficients of Isc | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM=1.5 | ||||||
