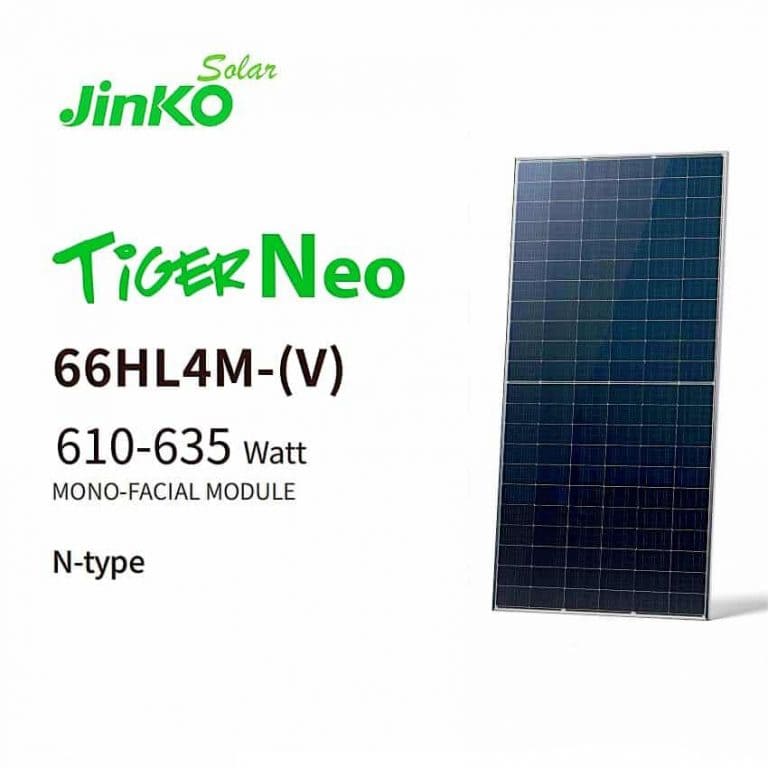

Jinko Tiger Neo 66HL4M-V 610-635 Watt Monofacial Module N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description
Jinko Tiger Neo 66HL4M-V | 610-635W | N-Type Monofacial Solar Module
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 66HL4M-V, a premium N-type monocrystalline module engineered for maximum power output and superior efficiency.
Features & Benefits:

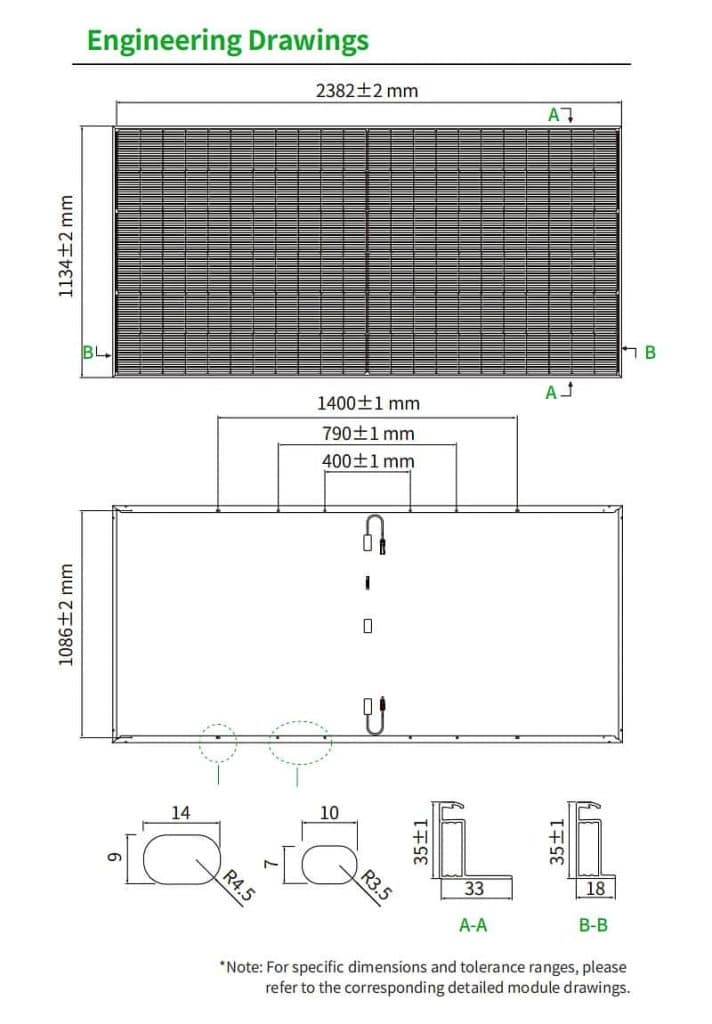

Mechanical Characteristics
| Cell Type | N-type Mono-crystalline |
|---|---|
| Number of cells | 132（66×2） |
| Dimensions | 2382×1134×35 mm |
| Weight | 28.2 kg |
| Front Glass | 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class Ⅱ |
| IEC Fire Type | Class C |
| Connector Type | JK03M/MC4/Others |
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |

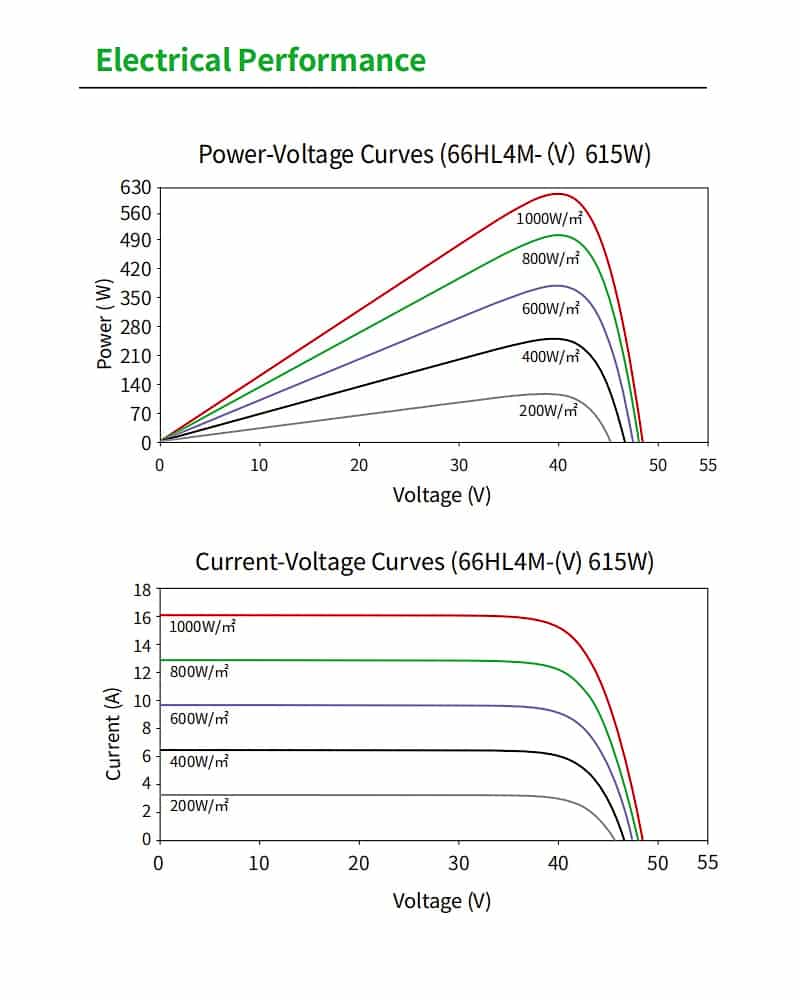

Specifications (STC)
| Maximum Power – Pmax [Wp] | 610 | 615 | 620 | 625 | 630 | 635 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage – Vmp [V] | 40.56 | 40.73 | 40.9 | 41.07 | 41.23 | 41.39 |
| Maximum Power Current – Imp [A] | 15.04 | 15.1 | 15.16 | 15.22 | 15.28 | 15.34 |
| Open-circuit Voltage – Voc [V] | 48.63 | 48.79 | 48.95 | 49.11 | 49.27 | 49.43 |
| Short-circuit Current – Isc [A] | 16.01 | 16.08 | 16.15 | 16.22 | 16.29 | 16.36 |
| Module Efficiency STC [%] | 22.58 | 22.77 | 22.95 | 23.14 | 23.32 | 23.51 |
| Power Tolerance | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % | 0 ~ + 3 % |
| Temperature Coefficients of Pmax | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ | -0.29 %/℃ |
| Temperature Coefficients of Voc | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ | -0.25 %/℃ |
| Temperature Coefficients of Isc | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ | 0.045 %/℃ |
| STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5 | ||||||
