Jinko Tiger Neo 48HL4M-DV 450-475 Watt Monofacial With Dual Glass N-type Solar Panel
Product features:
1.Ultra-high Power Generation/Ultra-high Efficiency
2.Enhanced Reliability
3.High Compatibility
4.Optimized Temperature Coefficient
5.Lower Operating Temperature
6.Outstanding Low Light Performance
7.Exceptional PlD Resistance
8. Certification:ISO:9001, ISO:14001, OHSAS 18001, BIS, UN38.3,UL,KC, IEC, PSE ,CE etc.
9.25 years limited performance warranty
Product Description

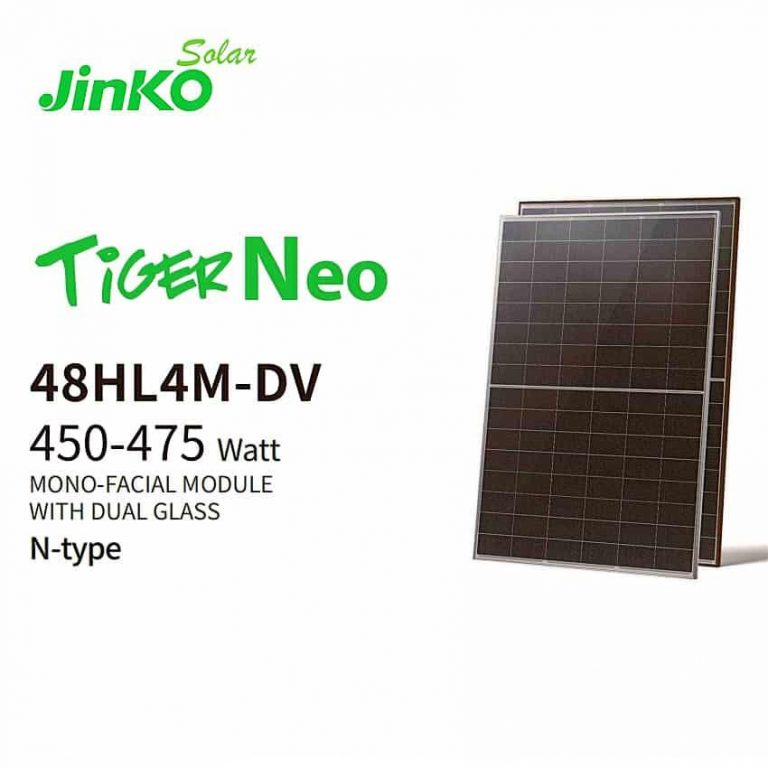

Jinko Tiger Neo 48HL4M-DV | 450-475W | N-Type Monofacial Solar Module with Dual Glass
Elevate your solar project’s performance and reliability with the Jinko Tiger Neo 48HL4M-DV, a premium Dual Glass N-type monocrystalline module engineered for maximum power output and superior efficiency.
Features & Benefits:

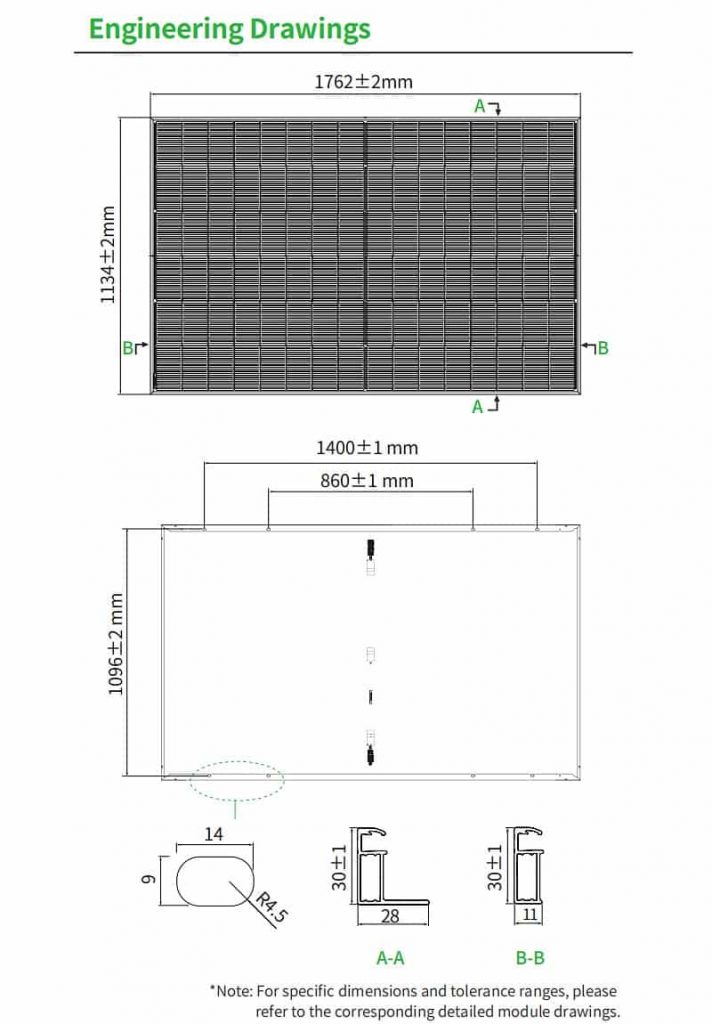

Mechanical Characteristics
| Cell Type | N - type Mono - crystalline |
|---|---|
| Number of cells | 96 (48×2) |
| Dimensions | 1762×1134×30 mm |
| Weight | 24.0 kg |
| Front Glass | 2.0 mm, Anti - reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class Ⅱ |
| IEC Fire Type | Class C |
| Connector Type | JK03M/JK03M2/Others* |
| Output Cables (Including Connector) | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |

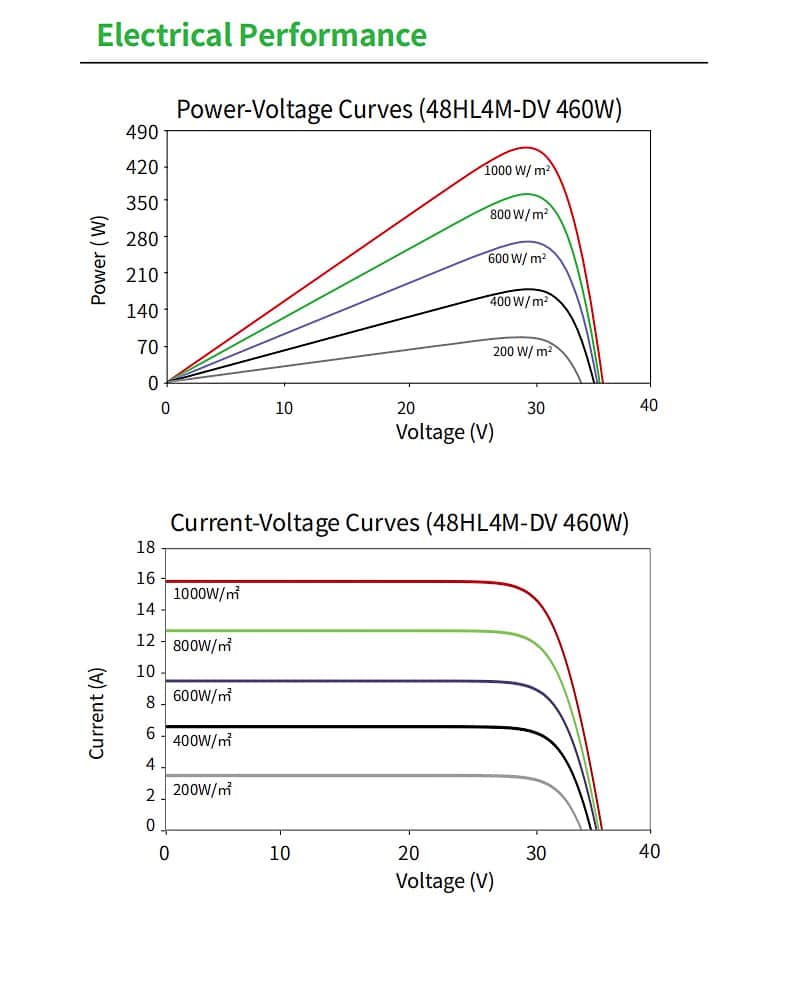

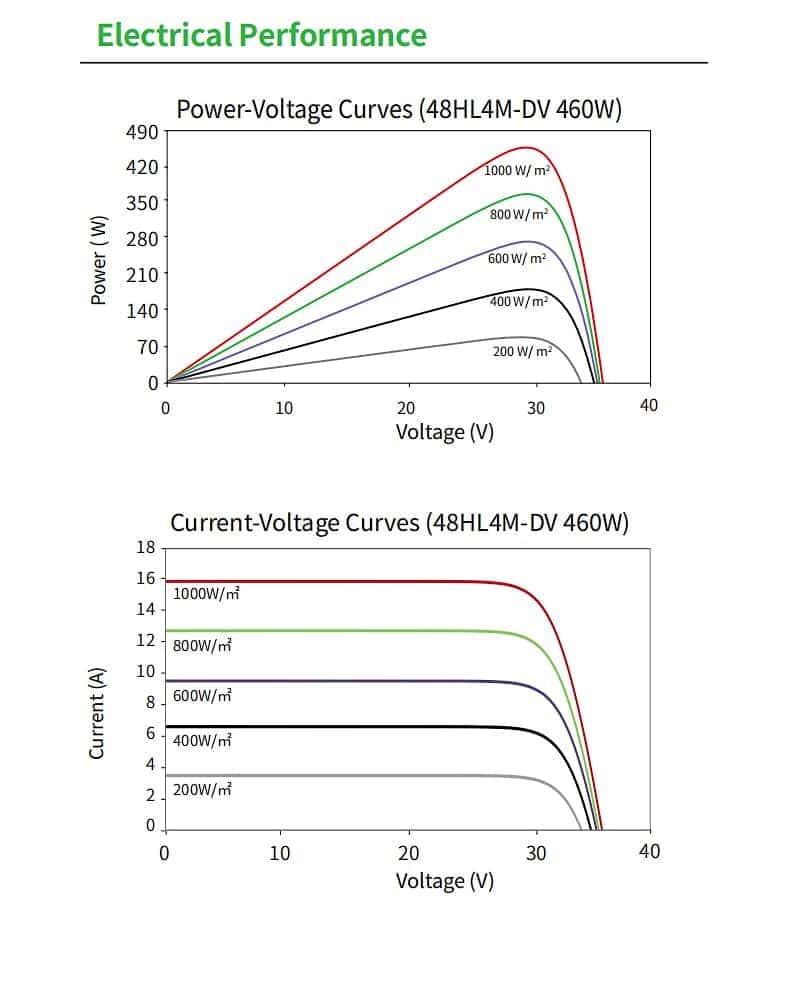

Specifications (STC)
| Maximum Power - Pmax [Wp] | 450 | 455 | 460 | 465 | 470 | 475 |
|---|---|---|---|---|---|---|
| Maximum Power Voltage - Vmp [V] | 30.04 | 30.28 | 30.51 | 30.74 | 30.97 | 31.19 |
| Maximum Power Current - Imp [A] | 14.98 | 15.03 | 15.08 | 15.13 | 15.18 | 15.23 |
| Open - circuit Voltage - Voc [V] | 35.88 | 36.05 | 36.22 | 36.39 | 36.56 | 36.73 |
| Short - circuit Current - Isc [A] | 15.83 | 15.88 | 15.93 | 15.98 | 16.03 | 16.08 |
| Module Efficiency STC [%] | 22.52 | 22.77 | 23.02 | 23.27 | 23.52 | 23.77 |
| Power Tolerance | 0～+3 % | 0～+3 % | 0～+3 % | 0～+3 % | 0～+3 % | 0～+3 % |
| Temperature Coefficients of Pmax | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C | -0.29 %/°C |
| Temperature Coefficients of Voc | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C | -0.25 %/°C |
| Temperature Coefficients of Isc | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C | 0.045 %/°C |
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM = 1.5 | ||||||
